The Gauges You Need to Be Monitoring on Your 4X4

When it comes to monitoring your 4X4’s vital signs, many wheelers overlook the importance of proper gauges and alarms—until it’s too late. Modern engines are full to the brim with sensors and ECU-controlled systems, but in my experience factory dashboard displays often provide limited information and react far too late to prevent damage.

If you’re serious about protecting your engine, whether you’re towing, 4X4’ing, or simply daily driving in extreme Aussie conditions, investing in the right gauges and alarms can save you from expensive repairs, poor performance and trip-ending breakdowns.

Start with an OBDII Gauge

Before you go drilling holes in your dash to mount a dozen gauges, start with the easiest and most cost-effective upgrade: an OBDII gauge. I personally use and love the ScanGauge III, in my opinion it is the best on the market.

An OBDII gauge plugs directly into your vehicle’s diagnostic port and pulls real-time data from the ECU, giving you access to a bunch of hidden parameters that your factory dash doesn’t show. The best part? They’re the epitome of ‘plug and play’ technology—just hook it up, select your gauges and you’re good to go.

guages

This can vary depending on your setup and priorities, but as a general rule, these are the key readings worth keeping an eye on:

• Coolant Temperature – Your factory temp gauge is more of a comfort gauge than a precision instrument. It’s designed to sit somewhere in the middle and stay there, even as temperatures fluctuate within a wide "normal" range. Ignorance may be bliss when it comes to a lot of things, but coolant temps ain’t of them. In my experience, by the time the stock gauge actually moves, you’re already in trouble. A digital readout gives you real-time, accurate data, so you can spot rising temps early— before they become an expensive problem.
• Transmission Temperature – If you’re towing and not watching this, you’re rolling the dice on your gearbox. Overheated fluid leads to slipping, premature wear, and a rebuild that’ll make your wallet cry.
• Boost Pressure – Keeping tabs on boost pressure is essential for tracking turbo performance and engine efficiency. A sudden drop can indicate a boost leak, failed intercooler hose, stuck-open wastegate, or a faulty boost control solenoid, all of which lead to power loss and reduced efficiency. A sudden spike beyond factory limits can trigger limp mode in many modern ECUs, protecting the engine from overboost conditions that could cause turbo overspeeding, excessive cylinder pressure, or failure. A healthy turbo system should maintain stable, consistent boost within its safe operating limits. Monitoring this readout helps diagnose performance issues early, ensuring your turbo is working as intended and preventing costly headaches down the line.
• Exhaust Gas Temperature (EGT) – These are especially critical for turbo diesels. Running high EGTs for too long can literally cook your turbo and pistons. Of all my gauges, this is the one I watch the most. An EGT gauge can give you a heads up to potential engine issues before they get the chance to go drastically wrong.
• Battery Voltage – Simple but useful, especially if you’re running a dual battery setup or heaps of accessories.
• Engine Load – This one’s seriously underrated, but it gives you a real-time look at how hard your engine is working. It’s perfect for adjusting throttle input, gear selection and keeping things efficient when towing or climbing long hills.

OBDII gauges are an absolute must-have, but it’s important to know their limitations. They only read what the ECU sees, meaning if a sensor fails, or if the ECU doesn’t monitor something (like block temperature), it won’t alert you. That’s where redundant protection comes in.

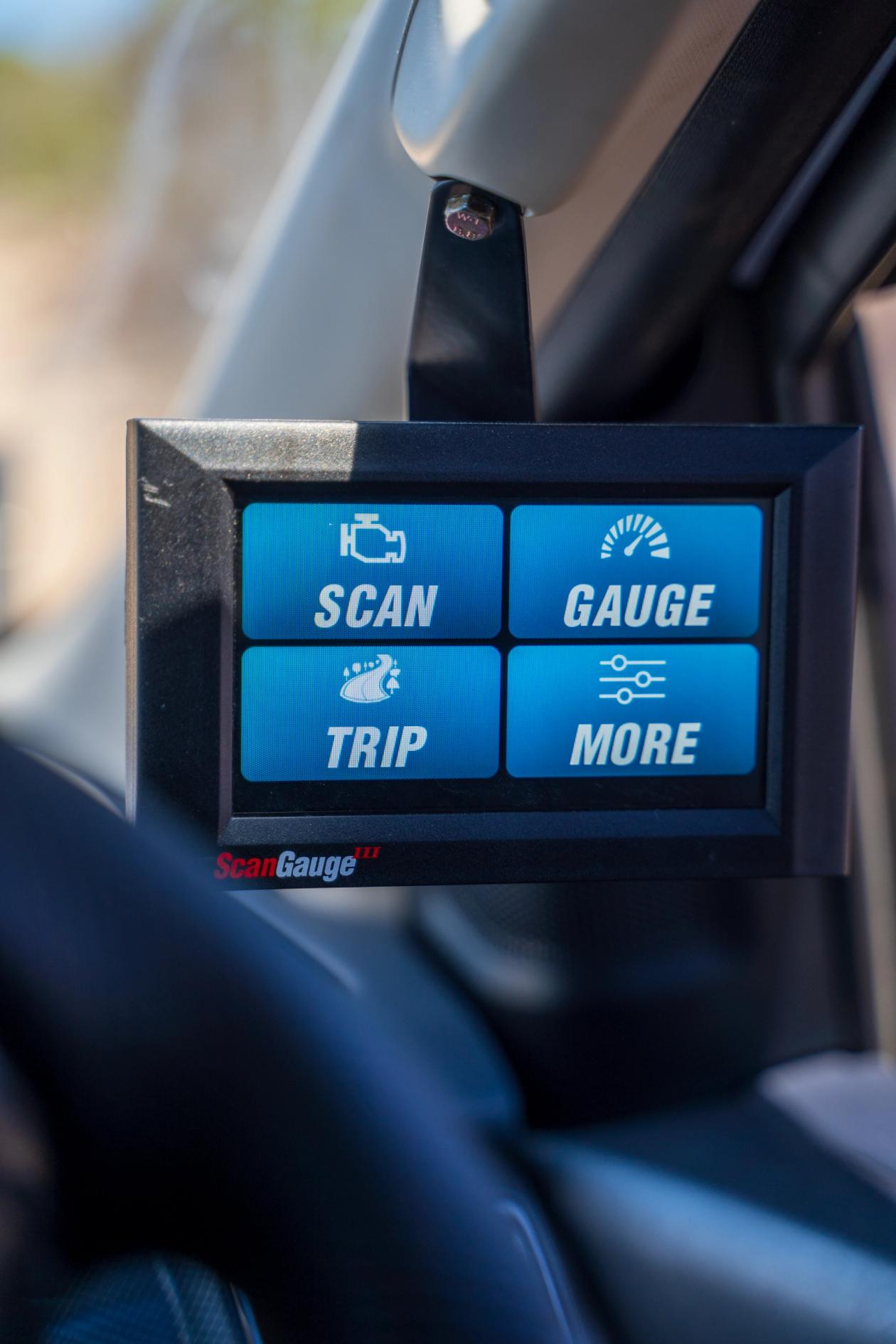

scangauge ii ford ranger

Redundancy is Key

Modern ECUs are good, but they’re not perfect. They rely on sensors, and if one fails—or if something isn’t being monitored—you’re essentially flying blind. That’s why additional and separate alarms and sensors can be the difference between catching an issue early or cooking your insanely expensive modern engine.

1. Low Coolant Alarm

Coolant temp sensors only work if there’s coolant in the system. If you lose enough coolant due to a leak, you’ll suddenly find the sensor is reading normal while your engine is actually overheating. That’s why a low coolant alarm is one of the smartest upgrades you can make. Generally mounted in the expansion tank a low coolant alarm will alert you as soon as the coolant drops below the sensor.

2. Engine Guard

Most people only monitor coolant temperature, but that’s only part of the picture. Coolant temp can lag behind actual engine temperature, meaning by the time it shows overheating, your block is already baking.

An Engine Guard system monitors the cylinder head temperature itself, giving you a faster and more accurate reading of what’s really happening. It also has custom alarm settings, so you can set a warning threshold before things get critical. This is especially useful for:

• Towing – Sustained loads push block temps up long before coolant temp reacts.
• Low-speed off-roading – Less airflow means heat soak builds up quickly.
• Cooling system failures – If a water pump, thermostat, or radiator fails, the block will heat up before the coolant temp gauge ever moves.

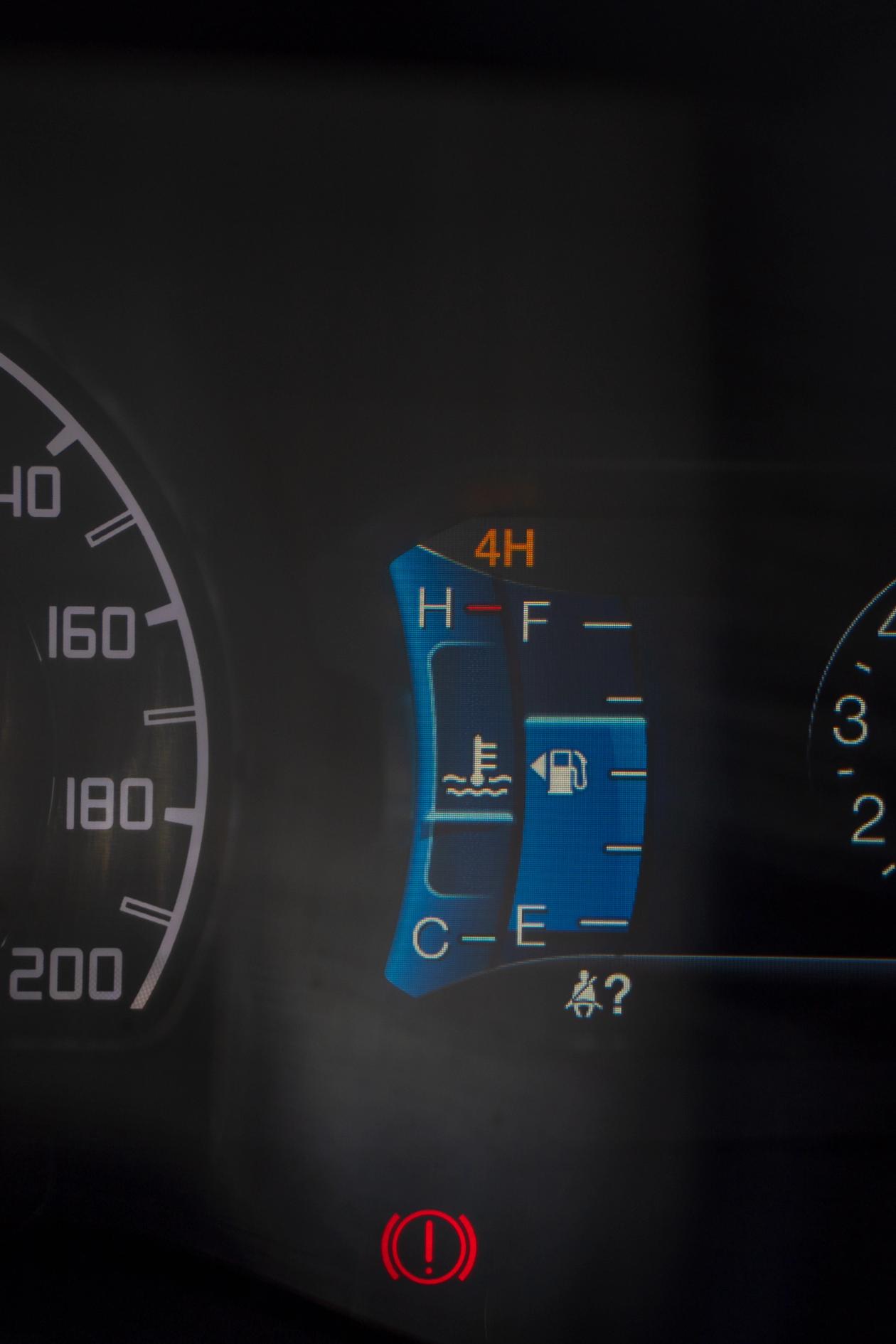

coolant gauge 4wd

The Best Setup for Different Driving Styles

Here’s what I’d recommend depending on how you use your 4X4.

For Light 4X4 Touring & Daily Driving:

• OBDII Gauge (e.g., ScanGauge III) – Keeps an eye on key engine vitals like coolant temp, boost, and engine load.
• Low Coolant Alarm – One of the best early warning systems you can fit. If you lose coolant, this will tell you before your engine cooks itself.

For Towing or Heavy 4WD’ing:

• OBDII Gauge – Still your go-to for real-time engine data.
• Low Coolant Alarm – Even more important when towing or working the engine hard.
• Engine Guard – Monitors cylinder head temperature and lets you set an alarm before things get out of hand.
• Transmission Temp Gauge – If you tow regularly, this is a no-brainer. Overheated fluid is a transmission killer.
• EGT Gauge – Essential for turbo diesels. If your exhaust gas temperatures get too high, it can (and will) spell disaster.

Final Thoughts

Relying on factory gauges alone, is bloody risky business. By the time a warning light comes on, it’sgenerally too late.

A quality OBDII gauge like the ScanGauge III is a must-have, but for towing, off-roading, or high-stress driving, adding a low coolant alarm and Engine Guard can give you real protection when it matters most.

I try to think of it this way: Monitoring your engine properly isn’t about paranoia—it’s about prevention. Because at the end of the day, a $300 gauge is a whole lot cheaper than a $15,000+ engine rebuild.
